1" Brass Foot Valve DN25 Check Valve Non Return Water Pump Bottom Filter | BSP Foot Valves with 25mm Hose Barb Fittings Adapter
4.2 (49 items)
Limited Time SaleUS$8.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 247466186 | Release Date | 2026/08/16 | List Price | US$6.00 | Model Number | 247466186 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name: 1” barb foot valve with Filter Material: Brass Product Weight : 150 G / 5.29 Ounces Product Dimensions (L*W*H) : 120*60*60 MM / 4.72*2.36*2.36 Inches Spring non return check valve 1 inch is made of brass, which is not easy to rust.suitable for 25mm hose. The water pump bottom valve is generally used for self - priming pumps (water pumps) to filter debris to prevent entering the pump. The use of a foot valve 1 inch can prevent the pump and the drive motor from rotating in the opposite direction, reduce the pump suction resistance, save energy and reduce consumption. The brass bottom valve only needs to be threaded to the suction hose, no complicated steps are required.Allows pump to stay primed, letting liquid to flow in and keeping it from flowing back out. The compact design fits easily into your existing pipeline system, and the clear installation instructions make the process straightforward for both professionals and DIY enthusiasts.

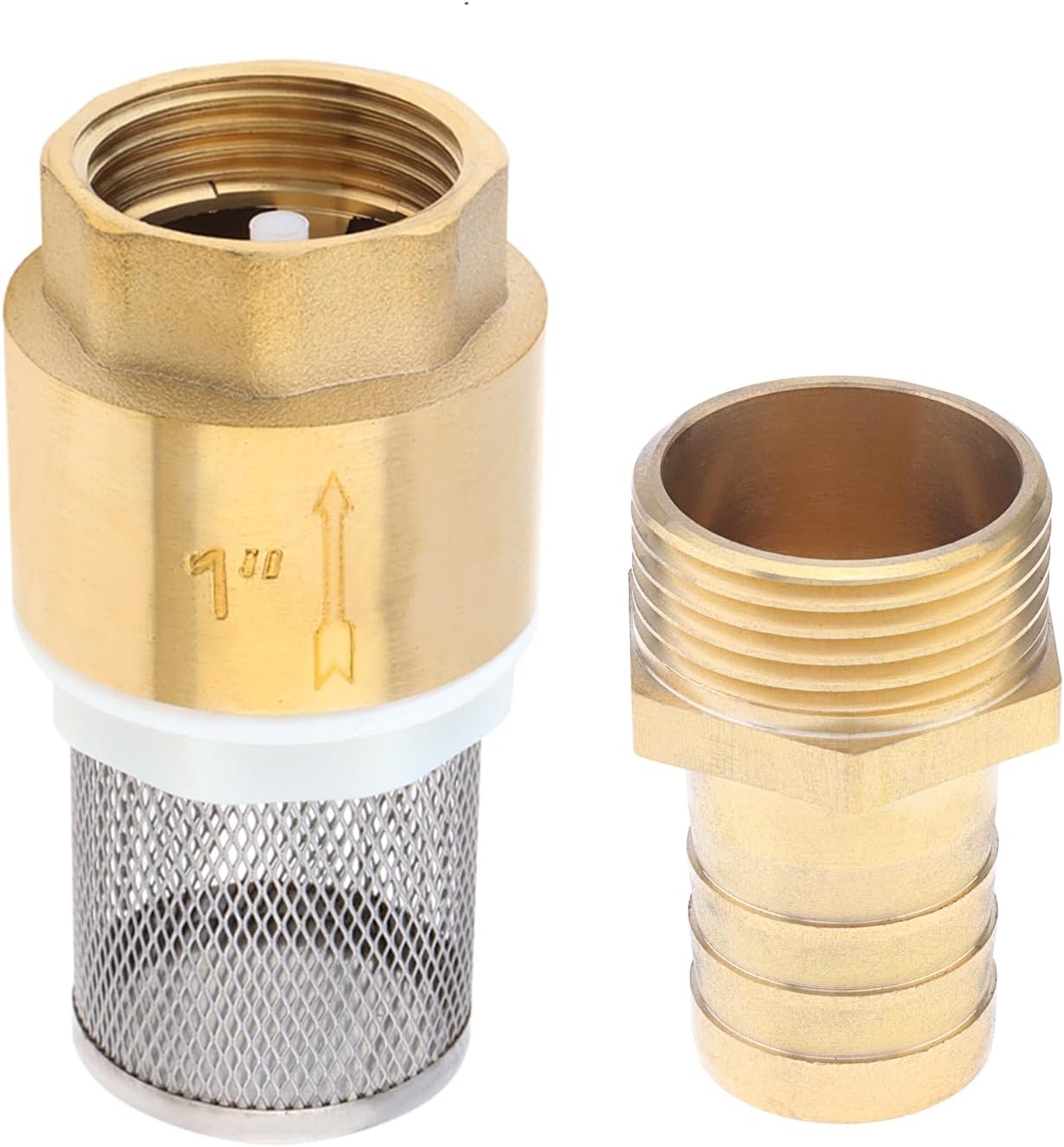

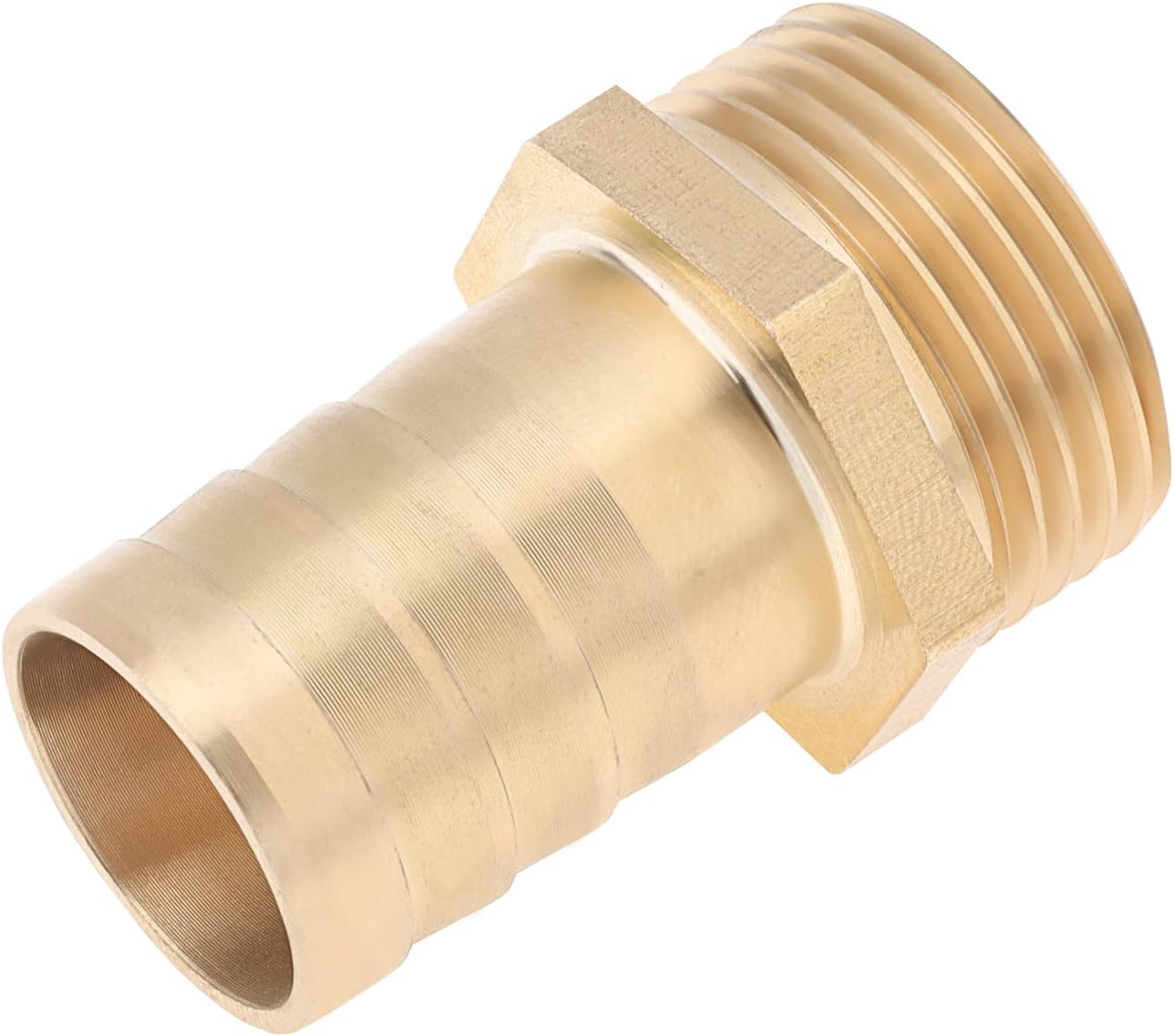

- Package Includes: 1 pcs 1" DN25 brass foot valve for water pump and 25mm hose barb fittings
- Material: The water pump bottom valve is made of copper vertical spring check valve and stainless steel filter screen, which is precise in construction and durable
- Energy Saving: The check valve with filter is generally used for the pump to filter debris and prevent debris from entering the pump, thereby reducing the pump suction resistance of the pump and reducing energy consumption. 1 inch foot valve for well pump maximum working pressures up to 1.6MPA (water, oil, gas)
- Check Action: The foot valve filter allows the pump to remain filled with liquid, which can limit the return of liquid in the pump tube to the water source, and plays the function of only entering and not leaving
- WARNING: Do not use this 1” barb foot valve with drinking water systems,Brass no return valve foot valve for well pump are generally installed at the bottom of the pump's underwater pipette and only need to be threaded to the suction facility hose. Suitable for well jet pumps, maintains pump priming, strainer filters out debris
| ASIN | B0D9VYZ4NR |
|---|---|
| Size | 0.56 inches |
| Brand Name | PNXKTXO |
| Unit Count | 1 Count |
| Valve Type | Foot Valve |
| Thread Size | 1 inch |
| Thread Type | NPT |
| Manufacturer | PNXKTXO |
| Model Number | PLU_309 |
| Material Type | Brass |
| Connector Type | Barb |
| Item Type Name | Brass Check Valve |
| Exterior Finish | Brass, Stainless Steel |
| Item Dimensions | 0.2 x 0.56 x 0.28 inches |
| Number of Items | 1 |
| Number of Packs | 1 |
| Number of Ports | 1 |
| Maximum Pressure | 1600 pascal |
| Number of Pieces | 1 |
| Specification Met | ASME B16.34, ASTM, MSS SP 72 |
| Included Components | Spring Non Return Check Valve |
| Inlet Connection Size | 1 inches |
| Inlet Connection Type | Barb |
| Outlet Connection Size | 1 inches |
| Outlet Connection Type | Barb |
| Manufacturer Part Number | PLU_309 |
